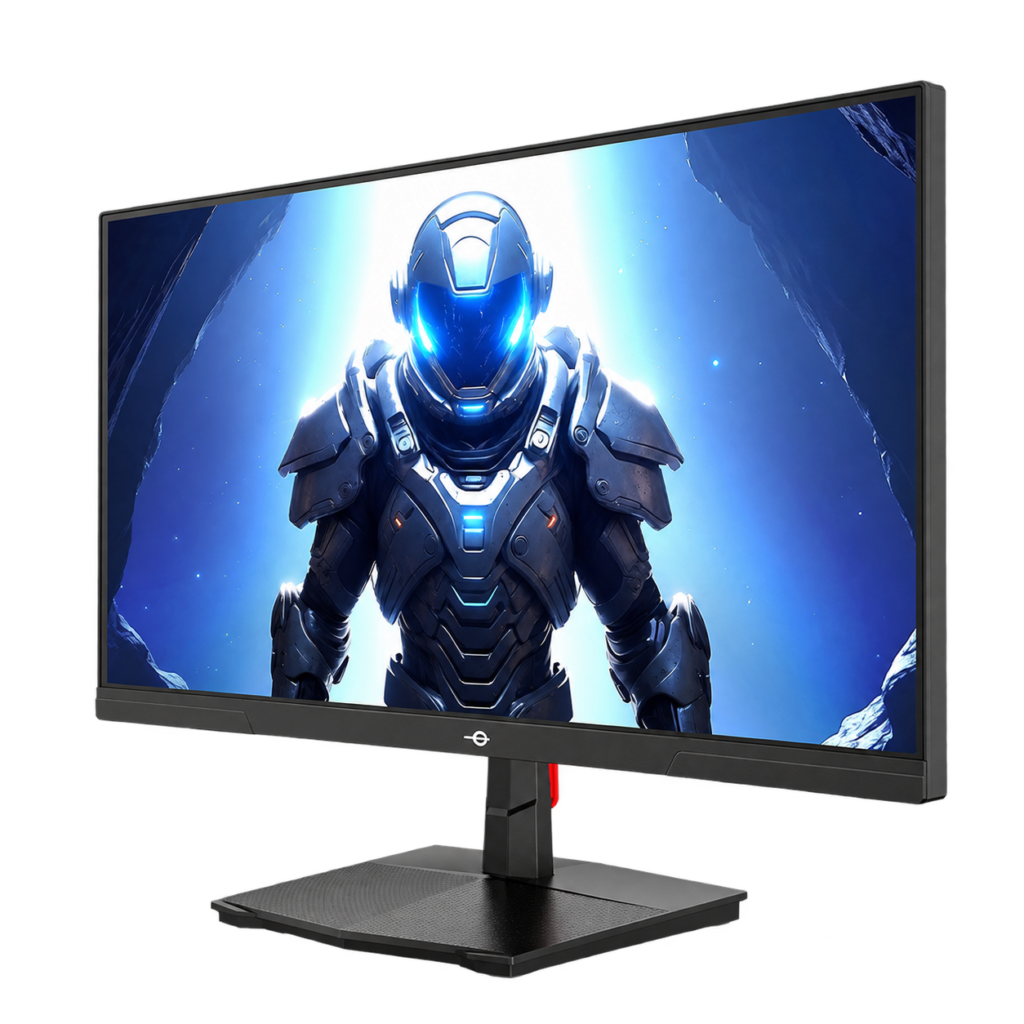

Titan Army P2510S
24.5-inch QHD Fast IPS at 240 Hz. Archive of response-time, overshoot and motion clarity tests.
PanelIPS
Measurements and specifications
IMartz test results. See each section for the measurement conditions.
About these tests
Our partial tests of the original P2510S. Response time and overshoot correspond to the same Top Speed mode at 240 Hz.
Display and format
General specifications
Panel
IPS
Resolution
1440p
Refresh rate
240 Hz
Screen size
24,5″
Aspect ratio
16:9
Curvature
Flat
Response time and PC gaming
Overdrive, tiempo de respuesta, overshoot, VRR e input lag.

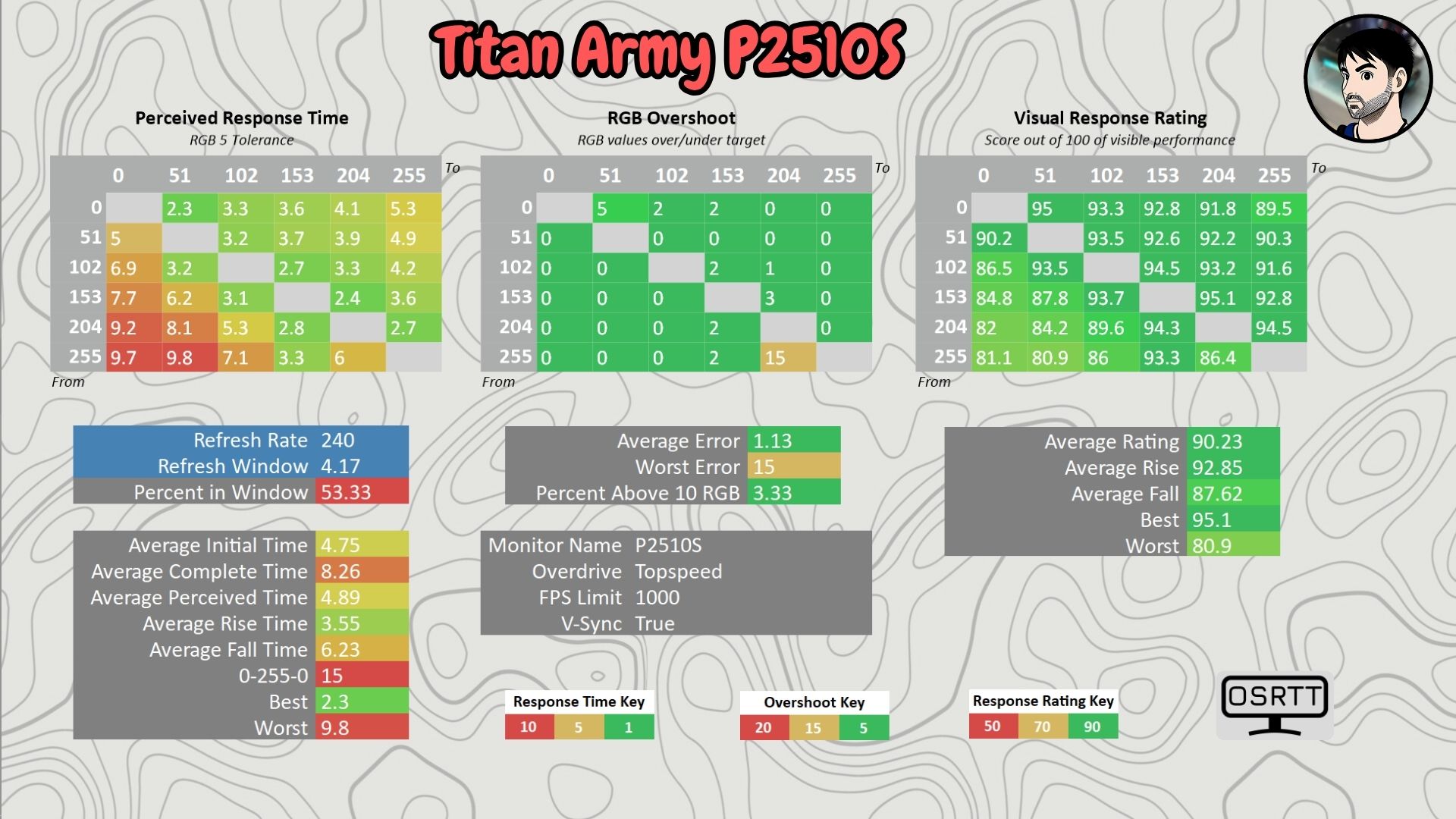

Response measurements
Response time
4.75 ms
Overshoot
1.13 RGB
Features and settings
VRR PC
Adaptive-Sync
Recommended overdrive
Top Speed · 240 Hz
Connectivity
Entradas de vídeo, USB-C, KVM, hub USB y extras de conexión.
Video
HDMI
2 × HDMI 2.0
DisplayPort
2 × DisplayPort 1.4
Additional connections
Other ports
Headphone output
Stand, mounting and extras
Calidad física, ergonomía, VESA y detalles destacables.
Ergonomics and mounting
VESA
100 x 100 mm
Extras
Notable extras
Official specifications: HDR10, PIP/PBP and Dynamic OD. Measurements and specifications are not extrapolated to the P2510S Plus.
Photos and test results
Open an image to view the full-size charts and browse the tests.
